6000 Product Series

Bearing No.	Bore d		O.D D		Width B		Chamfer r min (mm)	Load Rating (KN)		Ball Complement		Max. run-out speed (r/min)		Weight (Kg/pc)
	mm	in.	mm	in.	mm	in.		Dynamic Cr	Static Cor	No.	Size (mm)	Grease	Oil
6000	10	0.3937	26	1.0236	8	0.3150	0.3	4.55	1.95	7	4.763	29000	34000	0.019
6001	12	0.4724	28	1.1024	8	0.3150	0.3	5.1	2.39	8	4.763	26000	30000	0.021
6002	15	0.5906	32	1.2598	9	0.3543	0.3	5.6	2.84	9	4.763	22000	26000	0.035
6003	17	0.6693	35	1.3780	10	0.3937	0.3	6.8	3.35	10	4.763	20000	24000	0.040
6004	20	0.7874	42	1.6535	12	0.4724	0.6	9.4	5.05	9	6.35	18000	21000	0.068

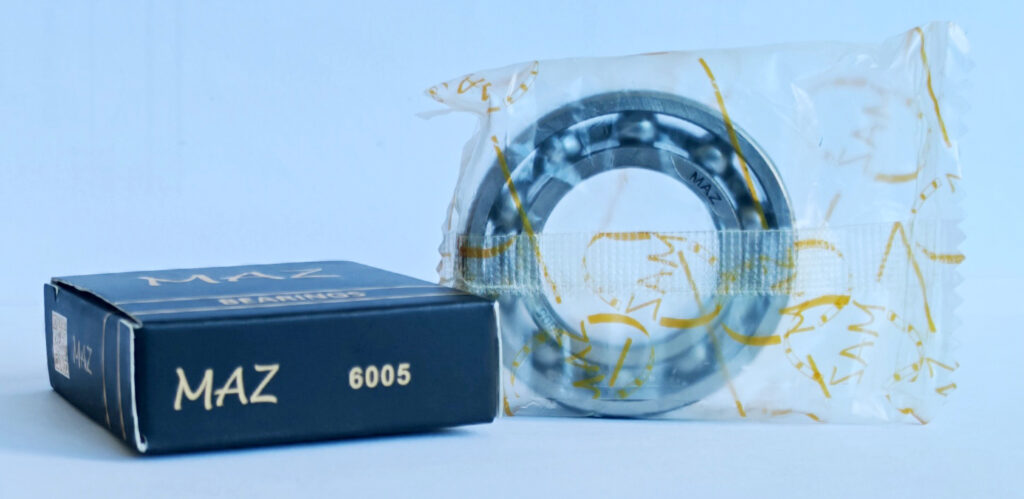

6005	25	0.9843	47	1.8504	12	0.4724	0.6	10.1	5.85	10	6.35	15000	18000	0.079
6006	30	1.1811	55	2.1645	13	0.5118	1.0	13.2	8.3	11	7.144	13000	15000	0.113
6007	35	1.3779	62	2.4409	14	0.5512	1.0	16.0	10.3	11	7.938	12000	14000	0.149
6008	40	1.5748	68	2.6772	15	0.5906	1.0	16.8	11.5	12	7.938	10000	12000	0.185
6009	45	1.7716	75	2.9528	16	0.6299	1.0	21.0	15.1	12	8.731	9200	11000	0.231
6010	50	1.9650	80	3.1496	16	0.6299	1.1	21.8	16.6	13	8.731	8400	9800	0.256
6011	55	2.1653	90	3.5433	18	0.7087	1.1	28.3	21.2	12	11.000	7700	9000	0.388
6012	60	2.3620	95	3.740	18	0.7087	1.1	29.5	23.2	13	11.000	7000	8300	0.414
6013	65	2.5590	100	3.9370	18	0.7087	1.1	30.5	25.2	13	11.112	6500	7700	0.421
6014	70	2.7559	110	4.3307	20	0.7874	1.1	38.0	31.0	13	12.303	6100	7100	0.604
6015	75	2.9528	115	4.5276	20	0.7874	1.1	39.5	33.5	14	12.303	5700	6700	0.649
6016	80	3.1496	125	4.9213	22	0.8661	1.1	47.5	40.0	14	13.494	5300	6200	0.854
6017	85	3.3465	130	5.1181	22	0.8661	1.1	49.5	43.0	14	14.000	5000	5900	0.89
6018	90	3.5433	140	5.5118	24	0.9449	1.5	58.0	49.5	14	15.081	4700	5600	1.02
6019	95	3.7402	145	5.7087	24	0.9449	1.5	60.5	54.0	14	15.081	4500	5300	1.08
6020	100	3.9370	150	5.9055	24	0.9449	1.5	60.0	54.0	14	16.000	4200	5000	1.15
